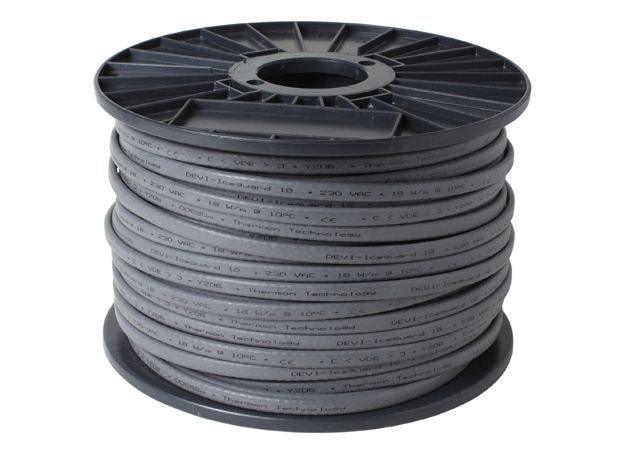

DEVIiceguard™ 18 (T) Drum Goods
DEVIiceguard™ 18 (T) is a self-limiting heating cable designed for ice and snow melting on roofs, in gutters, and in downpipes. The cable adjusts its heat output according to the surrounding temperature, helping to maintain operation under changing weather conditions.
The cable can be cut to the required length on site and installed directly on roof, gutter, and downpipe systems. DEVIiceguard™ heating cables must not be installed in direct contact with bitumen roofs.
For installation, self-limiting heating cables require over-temperature protection using a thermostat. The cable must also be protected by a residual current device (RCD) with a maximum trip current of 30 mA.
 Drum Goods.jpg)
Benefits
- Cut-to-length design supports adaptation to project requirements
- Simplifies installation on roofs, gutters, and downpipes
Specification
|
Nominal voltage |
230 V AC |
|
Nominal output |
18 W/m @ 0 °C |
|
Output tolerance (min-max) |
15,4-23,1 W/m @ 10 °C |
|
Maximum permissible use temperature |
65 °C, powered |
|
Minimum installation temperature |
-5 °C |
|
Cable dimensions |
11,8 mm x 5,8 mm (+/- 0,4 mm) |
|
Outer sheath |
UV protected, black TPE |
|
Screen |
Tinned copper braid, 1,25 mm2 |
|
Minimum braid coverage |
80% |
|
Maximum resistance protective braid |
14,8 Ω/Km |
|
Bending Ø, min. |
50 mm (Ø to the inside of the cable) |
|
IP Class |
IPX7 |
Warranty scope
Compliance
Standard compliance: EN 62395-1: 2013
