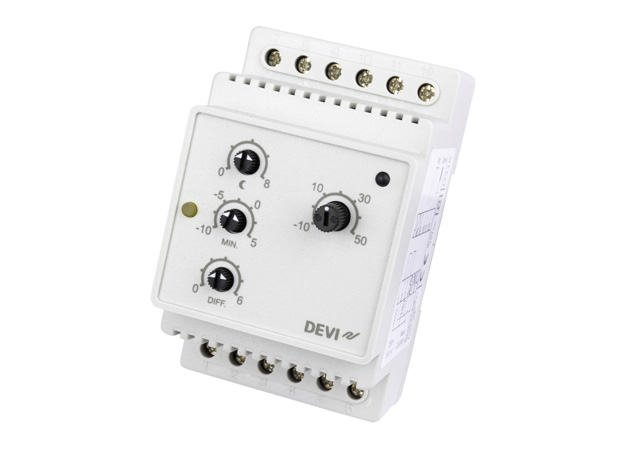

DEVIreg™ 316

DIN Rail Thermostat for Frost Protection, Heating and Cooling Control

DEVIreg™ 316 is an electronic thermostat designed for DIN rail installation in electrical cabinets. The thermostat is used for temperature control in frost protection, heating, cooling, snow melting, and pipe tracing systems.
A key function of the thermostat is temperature range control, allowing both lower and upper temperature limits to be defined. Heating is activated when the measured temperature is within the selected temperature range. This control method is commonly used in roof and gutter frost protection systems when connected to an external outdoor air temperature sensor.
The thermostat includes settings for hysteresis adjustment and temperature setback control during scheduled periods when connected to an external timer.
DEVIreg™ 316 incorporates relay outputs with both normally open (NO) and normally closed (NC) contacts for integration into heating and cooling control systems. The relay contacts are voltage-free and can be used in control systems with voltages up to 250 V.
The sensor circuit is galvanically separated from the high-voltage section of the thermostat.

Features

  • DIN rail installation
  • Adjustable lower and upper temperature limits
  • Temperature range control mode
  • Adjustable hysteresis
  • Temperature setback function via external timer
  • Normally open (NO) relay contact
  • Normally closed (NC) relay contact
  • Voltage-free relay outputs
  • Control voltages up to 250 V
  • LED indication for operating status
  • Galvanically separated sensor circuit
  • Support for heating and cooling control

Applications

  • Roof frost protection
  • Gutter heating systems
  • Downpipe frost protection
  • Ground snow melting systems
  • Pipe tracing systems
  • Room temperature control
  • Floor temperature control
  • Ventilation control
  • Cooling systems
DEVIreg™ 316 DIN Rail Thermostat for Frost Protection, Heating and Cooling Control

Benefits

  • Temperature control within a defined temperature range
  • Adjustment of switching differential through hysteresis settings
  • Integration with external timers for temperature setback operation
  • Installation on DIN rail in electrical cabinets
  • Support for heating and cooling applications from a single controller
  • Electrical separation between sensor and high-voltage circuits
  • Flexible integration through voltage-free relay contacts

Specification

Operation voltage

220 - 240V~ 50/60 Hz

Standby power consumption

max. 0,25 W

Resistive load

Max. 16 A, 3680 W @ 230 V

Inductive load

max. 1 A, cos φ = 0,3

Hysteresis

0 °C to 6 °C

Ambient temperature

-10 °C to +45 °C

Lowering in economy periods

0 °C to 8 °C

Temperature range

-10 °C to +50 °C

Minimum temperature range

-10 °C to +5 °C

Controller type

1 B

Storage temperature

-20 °C to +65 °C

IP class

IP 30

Protection class

Class II -

Dimensions (H/W/D)

85 x 52 x 58 mm

Weight

180 g

Marking

D316

Compliance

Standard complianceEN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat)

Compliance

Product variants

Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents

Item no

Product name

Temperature range

Sensor type

140F1075

DEVIregTM 316

-10 °C to +50 °C

Wire sensor, 3 m,
NTC 15 kOhm at 25 °C
