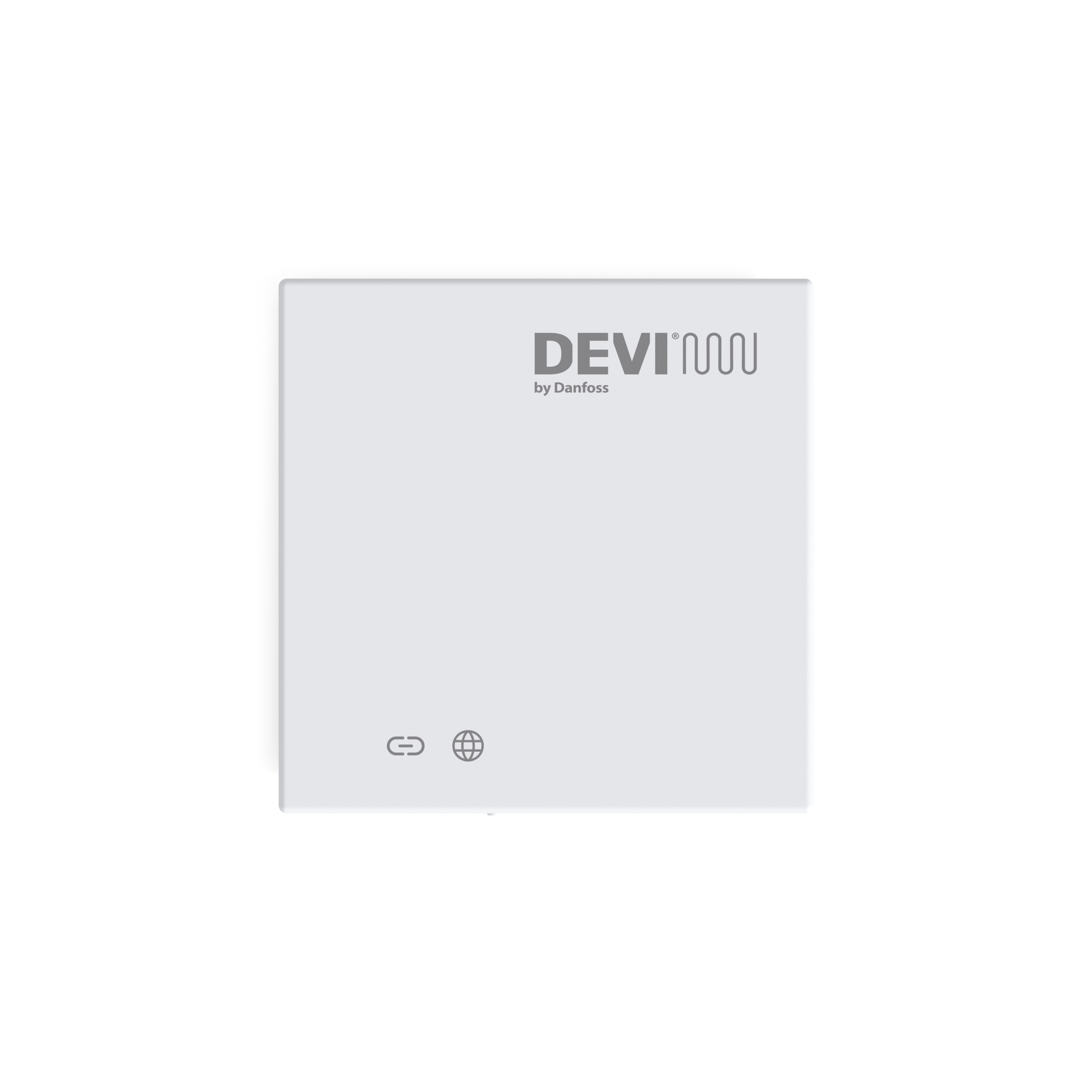

DEVI Connect Gateway
Zigbee Thermostat Gateway
DEVI Connect Gateway
The DEVI Connect Gateway is a Zigbee gateway designed to connect compatible Zigbee-enabled devices with the DEVI Connect App, providing convenient access to key control and monitoring functions from a smartphone or tablet.
Acting as the communication hub between connected devices and the app, the gateway enables users to view, adjust, and manage supported heating controls from virtually any location with an internet connection.
Installation is straightforward. Simply connect the gateway to an internet router, complete the setup in the DEVI Connect App, and begin adding compatible Zigbee devices to the system.
The DEVI Connect solution is developed to provide easy access to essential device settings, helping users manage indoor comfort through a single, user-friendly interface.
The DEVI Connect Gateway functions as a Zigbee Thermostat Gateway, enabling communication between compatible Zigbee thermostats and the DEVI Connect App. This allows users to control heating settings, create schedules, and monitor connected devices through one centralized platform.
Designed for residential smart heating applications, the gateway supports both local and remote access to compatible devices, offering flexibility for everyday heating management.
Watch the how-to video for the initial setup
User Guide - DEVI Connect App
Benefits
- Zigbee connectivity
- In app setup
- Plug and play gateway
- Remote and local control
- Power adapter included
- Multilanguage app
- Shine through indicators for power and network
- Customizable scheduling
Specification
| Adapter | 100 V- 240V~ 50/60 Hz , 5V 1A DC |
| Power Consumption / Standby | < 5W / < 2W |
| Wired Communication | 10/100M Ethernet Port (RJ45, LAN) |
| Power supply | 5VDC (USB-C) |
| Wireless communication | Zigbee |
| Transmission range | Up to 30m |
| Pollution degree | 2 (domestic use) |
| Firmware updates | Supports over the air updates |
| Storage temperature and conditions | -20 °C to 60 °C, 90% RH non-condensing |
| Operating temperatures and conditions | -10 °C to 45 °C, 90% RH non-condensing |
| IP class | X0 |
| Protection class | Class III |
| Transmission frequency (GHz) | 2.405 – 2.480 GHz |
| Transmission Power (dBm) | <19 dBm |
| Color | RAL9016 Polar white |
| Dimensions (H/W/D): | 90mm x 90mm x 23mm |
| Weight, net | 152 g |
| Number of users who can join home (DEVIConnect App) |
20 pcs |
| Number of homes in app (DEVIConnect App) |
20 pcs |
| Number of devices per DEVI Connect (gateway) |
200 units |
Warranty
Compliance
• 62368-1 | • EN 18031-1:2024 1 • EN 301489
• EN 55032 1 • EN 55035
DEVI Connect App
| Use DEVI Connect Zigbee App with your DEVI Connect Gateway for full control from anywhere. |
 |
Product variants
Choose a product variant to go for product page on Danfoss Store, where you can find more details and documents
| Item no. | Product name | Type |
|---|---|---|
| 140F1166 | DEVI Connect | Gateway for zigbee connectivity |
| Compatible products | ||
| 140F1170 | DEVIreg™ InControl *Only for Denmark |
Connectable Zigbee thermostat with NTC 15 kΩ @ 25°C, 3 m sensor in box |
| 140F1162 | DEVIreg™ Display Connect | Connectable Zigbee room thermostat with NTC 15 kΩ @ 25°C, 3 m sensor in box |
